Technical Dive: Gas Sponsorship via Paymasters

Gas sponsorship is one of the features introduced by ERC-4337. It allows developers to completely abstract away gas costs from their users by sponsoring transactions or by letting users pay fees in ERC-20 tokens instead of native ETH. This deep dive explores the full technical landscape of paymaster-based gas sponsorship as implemented in Openfort's PaymasterV3EPv9 contracts.

Background: The Paymaster in ERC-4337

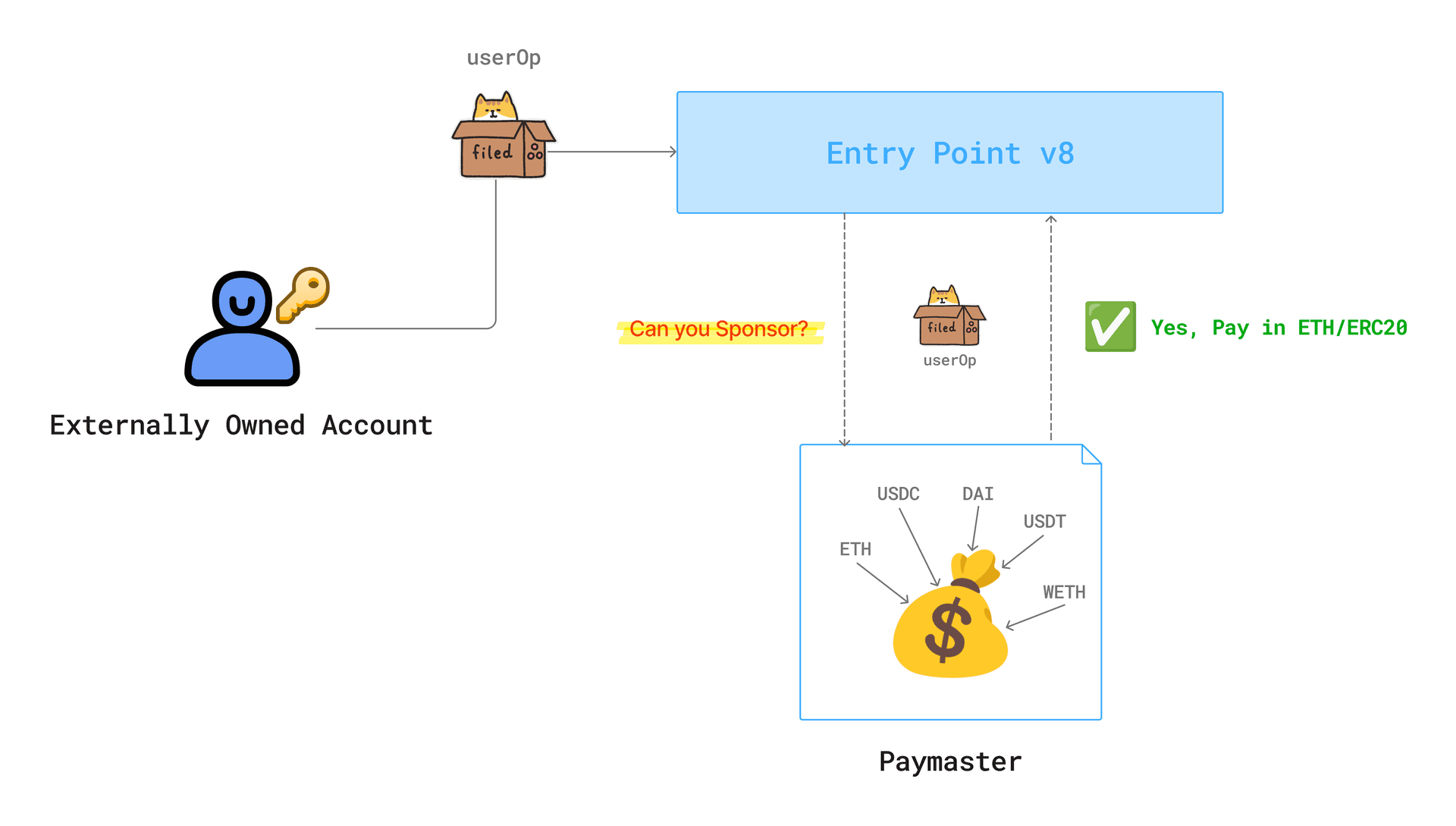

In the ERC-4337 architecture, a Paymaster is a smart contract that can pay for another user's transaction gas fees. When the paymasterAndData field in a UserOperation is not empty, the EntryPoint triggers an alternative flow:

1. During validation, the EntryPoint deducts the required ETH prefund from the paymaster's deposit (not from the sender) and calls validatePaymasterUserOp() on the paymaster contract.
2. During execution, the user's intended call is forwarded to the smart account.
3. During post-execution, the EntryPoint calls postOp() on the paymaster, allowing it to finalize accounting, refund excess tokens, collect ERC-20 payments, or emit sponsorship events.

This three-phase lifecycle (validatePaymasterUserOp → execution → postOp) is the foundation of all paymaster implementations.

Two Sponsorship Modes (PaymasterV3.sol)

Openfort's paymaster supports two top-level sponsorship modes, each serving a fundamentally different use case:

Mode	Byte	Description
Verifying Mode	0x00	The paymaster fully sponsors the user's gas. The user pays nothing.
ERC-20 Mode	0x01	The user pays for gas with ERC-20 tokens (e.g. USDC, USDT). The paymaster fronts the ETH cost and collects equivalent token value from the user in postOp.

The mode byte is the first byte of the paymasterData (the data appended after the paymaster address in paymasterAndData), and it determines the entire downstream parsing and execution logic.

ETH-Sponsored/executeCall.ts

Verifying Mode: Full Gas Sponsorship

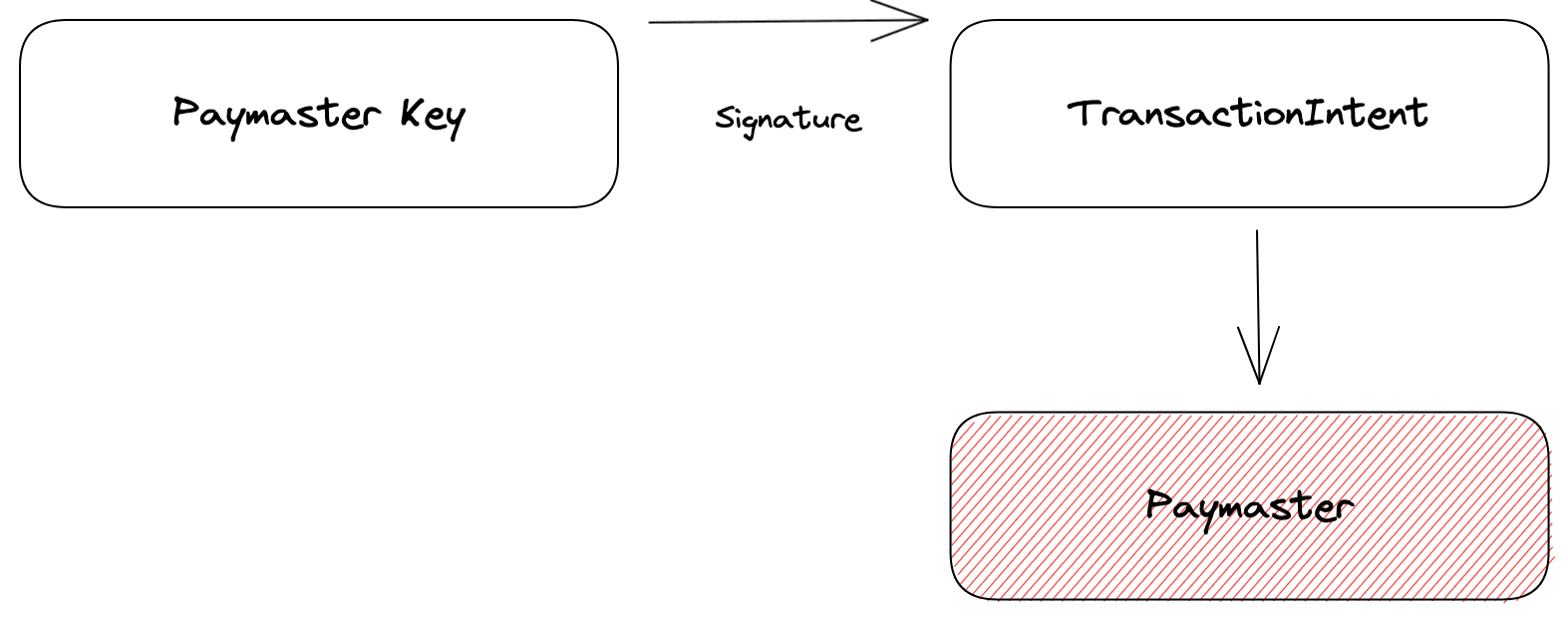

In Verifying Mode, a designated off-chain signer (controlled by Openfort) evaluates whether a given UserOperation qualifies for sponsorship based on configurable policies rules that can target specific contracts, functions, time windows, gas budgets, or user segments.

If the operation qualifies, the signer produces a signature over the full UserOperation and relevant paymaster fields. This signature is embedded in the paymasterData and verified on-chain during validatePaymasterUserOp().

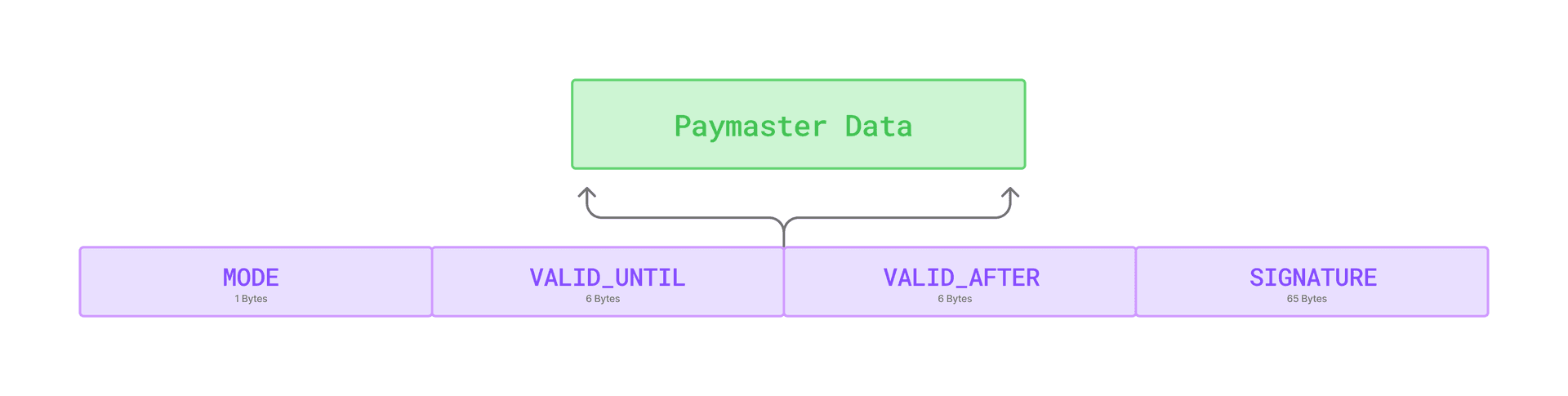

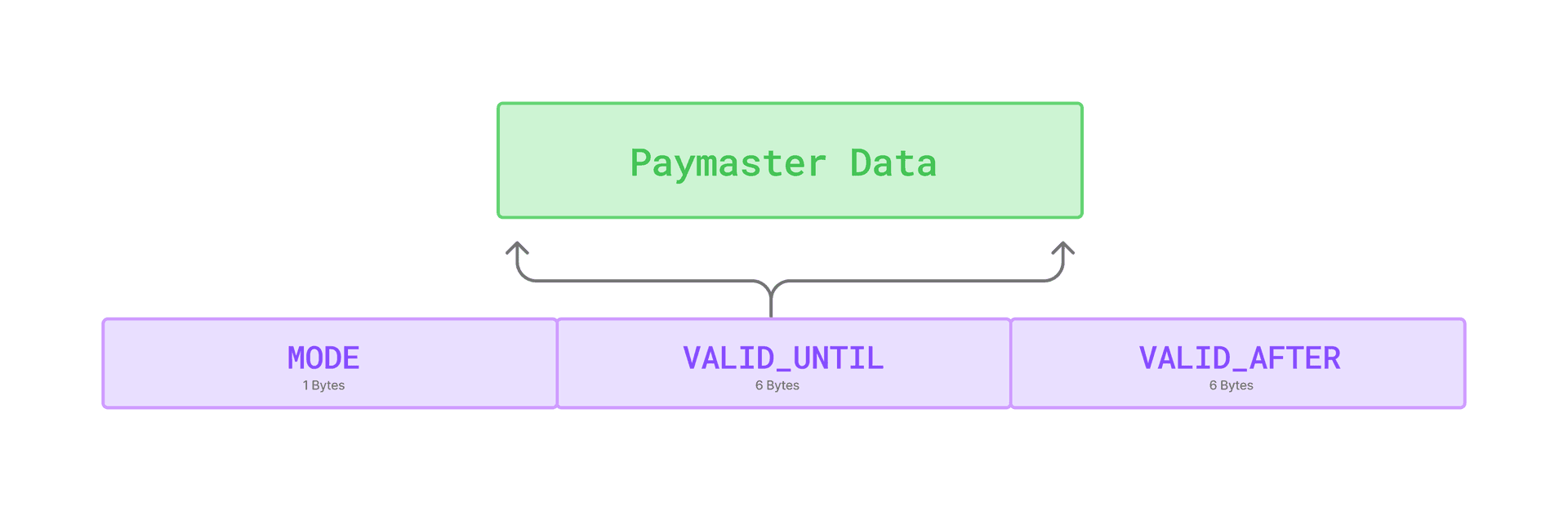

paymasterData Structure (Verifying Mode)

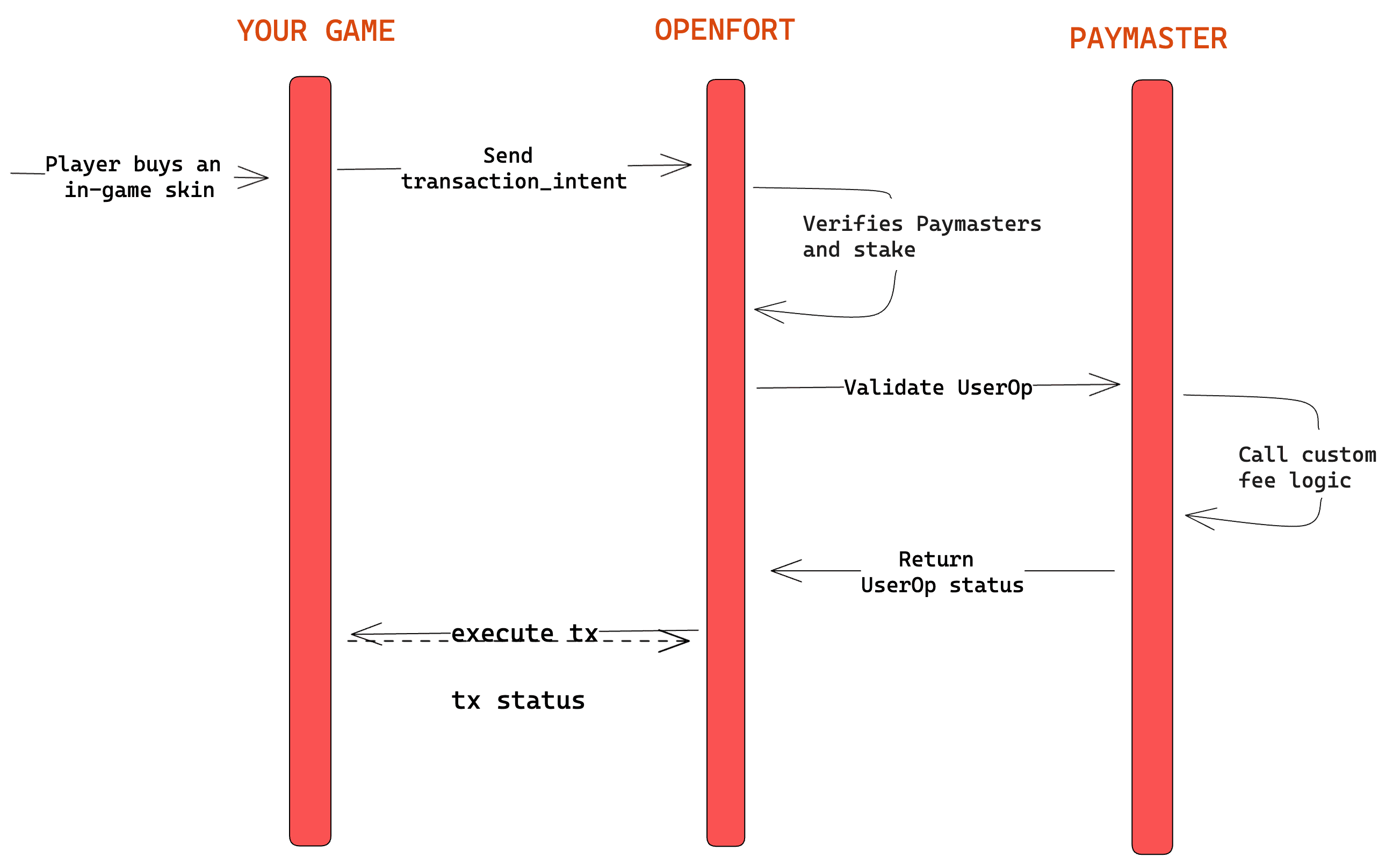

Lifecycle

Policy Engine

Openfort's policy system allows granular control over sponsorship.

These policies are evaluated off-chain. If a UserOperation satisfies the active policy rules, the signer signs over it. If it does not, the API rejects the sponsorship request and the user must either self-fund or use ERC-20 mode.

When to Use Verifying Mode

Verifying mode is ideal when the application developer wants to sponsor gas costs entirely common in onboarding flows, gaming, loyalty programs, or any context where requiring users to hold ETH would create friction. The paymaster's deposit at the EntryPoint must be periodically replenished by the developer.

ERC-20 Mode: Paying Gas with Tokens

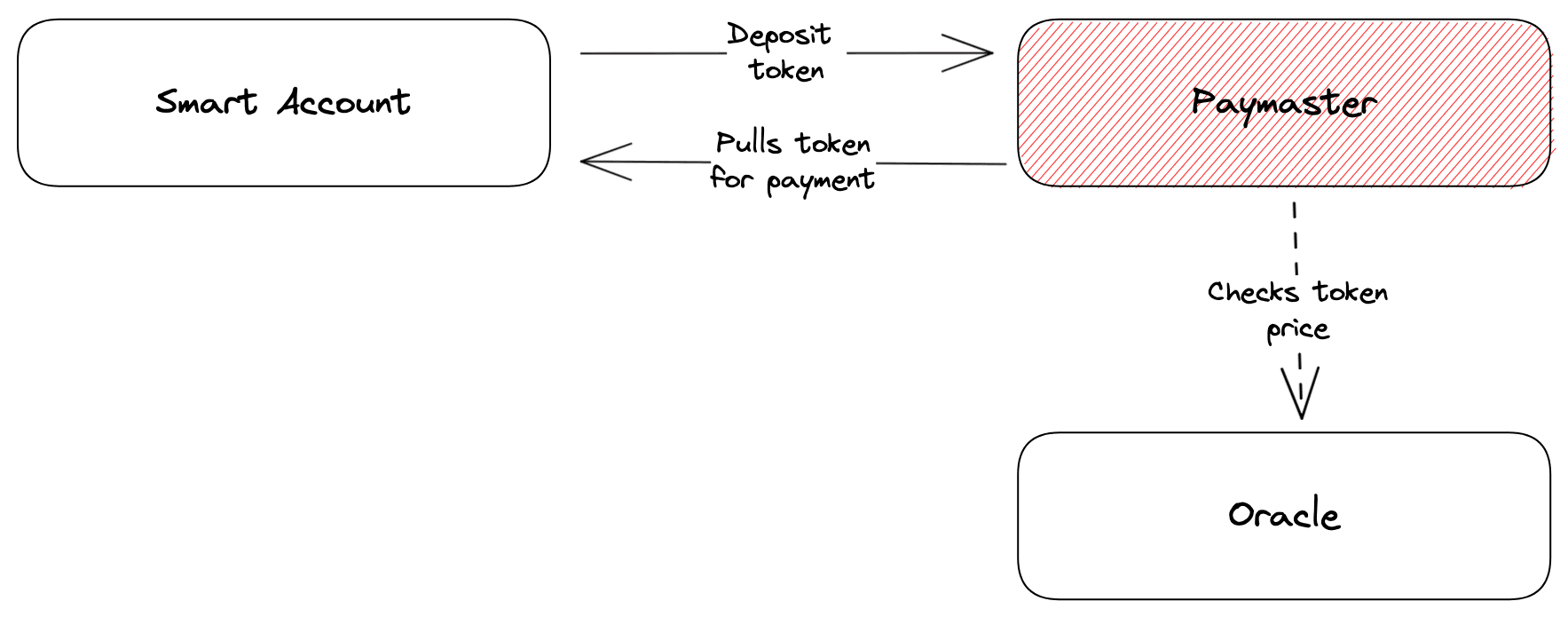

In ERC-20 Mode, users pay for their own gas but in ERC-20 tokens rather than native ETH. The paymaster fronts the ETH to the bundler and then collects the equivalent token amount from the user during postOp(), based on an exchange rate provided by the off-chain signer.

This mode supports eight sub-modes controlled by a single combinedByte a bitmask with three feature flags:

Bit	Flag	Feature	Description
0	0x01	constantFeePresent	Adds a fixed protocol fee on top of the gas cost
1	0x02	recipientPresent	Specifies an address to receive excess tokens
2	0x04	preFundPresent	Charges tokens upfront during validation, reconciles in postOp

Base paymasterData Structure (ERC-20 Mode)

All ERC-20 sub-modes share a common base layout:

Optional fields are appended after the treasury in a strict order enforced by the Solidity parsing logic in _parseErc20Config():

The signature (65 bytes) follows after all optional fields.

Core ERC-20 Token Payment Flow

Before examining the eight individual sub-modes, it is important to understand the core payment mechanism that underpins all of them.

During validatePaymasterUserOp():

The paymaster verifies the off-chain signer's signature over the UserOperation and all paymaster-specific fields (token address, exchange rate, treasury, optional fields). If preFundPresent is set, a safeTransferFrom is executed to collect preFundInToken from the user immediately. Otherwise, no token transfer occurs during validation the paymaster relies on the user's pre-existing approval to collect tokens in postOp.

During postOp():

The paymaster calculates the actual gas cost of the operation, converts it to token value using the exchange rate, adds any constantFee, and settles the difference between what was pre-funded (if anything) and what was actually owed. The settlement uses bidirectional safeTransferFrom calls:

• If the user owes more than the preFund: tokens are transferred from the user to the treasury.
• If the user was overcharged: tokens are refunded from the treasury back to the user.
• If a recipient is set and preFundInToken > actualCost: excess tokens go to the recipient instead of back to the user.

The cost-in-token calculation includes a penalty gas estimate that accounts for the EntryPoint's 10% penalty on unused execution gas a critical detail that prevents the paymaster from being undercharged.

The Eight ERC-20 Sub-Modes

Mode 0x00 — Basic

The simplest ERC-20 mode. The user pays the exact gas cost in tokens after execution. No constant fee, no recipient, no pre-funding.

Combined Byte: 0x00 (binary: 000)

Flow:

Use cases: Straightforward gas payment in stablecoins (USDC, USDT, DAI). The user approves the paymaster in advance, and pays only for what they consume.

Example: ERC20-Sponsored/executeCall.ERC20.ts

Mode 0x01 — ConstantFee

Adds a fixed protocol fee on top of the actual gas cost. This fee is denominated in the ERC-20 token and is independent of gas consumption.

Combined Byte: 0x01 (binary: 001)

Additional paymasterData field:

Flow:

Use cases: Revenue generation per transaction, protocol service fees, subscription-like models where each operation carries a flat surcharge.

Example: ERC20-Sponsored/executeCall.ERC20.ConstantFee.ts

Mode 0x02 — Recipient

Introduces a recipient address that receives excess tokens when a pre-funded amount exceeds the actual cost. In this mode, without preFundPresent, the recipient mechanism activates based on the computed preFundInToken derived from the max gas cost.

Combined Byte: 0x02 (binary: 010)

Additional paymasterData field:

Flow:

Use cases: Referral systems where the dApp earns from gas overestimation, fee-sharing models, donation mechanisms where excess is routed to a charity address.

Example: ERC20-Sponsored/executeCall.ERC20.Recipient.ts

Mode 0x03 — ConstantFee + Recipient

Combines the fixed protocol fee with the recipient mechanism. The user pays actualGasCost + constantFee, and any excess beyond this total is sent to the recipient.

Combined Byte: 0x03 (binary: 011)

Additional paymasterData fields:

Flow:

Use cases: Protocol revenue plus referral earnings, tiered revenue models with a base fee and variable earnings from excess.

Example: ERC20-Sponsored/executeCall.ERC20.ConstantFeeRecipient.ts

Mode 0x04 — PreFund

Charges tokens upfront during the validation phase by executing a safeTransferFrom before the UserOp is executed. In postOp, the actual cost is calculated and the difference is reconciled either the user pays more or the treasury refunds the overpayment.

Combined Byte: 0x04 (binary: 100)

Additional paymasterData field:

Flow:

Important: This mode requires a higher paymasterVerificationGasLimit (200,000+) because the safeTransferFrom during validation consumes significantly more gas than a signature-only check.

Use cases: Escrow patterns, budget control (user caps maximum spend), trust-building UX where users see the exact upfront cost, enterprise prepaid gas for batch operations.

Example: ERC20-Sponsored/executeCall.ERC20.PreFund.ts

Mode 0x05 — PreFund + ConstantFee

Combines upfront deposit with a fixed protocol fee. The total cost is actualGasCost + constantFee, reconciled against the pre-funded amount.

Combined Byte: 0x05 (binary: 101)

Additional paymasterData fields:

Flow:

Use cases: Enterprise deposits with per-transaction service charges, subscription-plus-usage billing models.

Example: ERC20-Sponsored/executeCall.ERC20.PreFundConstantFee.ts

Mode 0x06 — PreFund + Recipient

Upfront deposit where excess goes to a recipient instead of being refunded to the user. This is a key distinction from Mode 0x04 the user does not get a refund if they overpay.

Combined Byte: 0x06 (binary: 110)

Additional paymasterData fields:

Flow:

Use cases: Referral-plus-escrow models, protocol revenue capture from gas overestimation, donation mode where excess is automatically forwarded.

Example: ERC20-Sponsored/executeCall.ERC20.PreFundRecipient.ts

Mode 0x07 — ALL (PreFund + ConstantFee + Recipient)

The fully-loaded mode with all three optional features enabled. Pre-funds tokens during validation, adds a fixed protocol fee, and routes any excess to a designated recipient.

Combined Byte: 0x07 (binary: 111)

Additional paymasterData fields:

Flow:

Use cases: Full revenue models with multiple streams per transaction, enterprise billing with pre-funding, service fee, and operational wallet capture.

Example: ERC20-Sponsored/executeCall.ERC20.All.ts

Gas Considerations

The choice of sub-mode has direct implications on gas limits that must be set in the UserOperation:

Standard Modes (0x00, 0x01, 0x02, 0x03)

These modes perform no token transfer during validation only a signature verification. The paymasterVerificationGasLimit can be set to a standard value:

PreFund Modes (0x04, 0x05, 0x06, 0x07)

These modes execute a safeTransferFrom during validation, which involves an external call to the ERC-20 token contract. This requires significantly more gas:

If gas estimation is performed before the paymaster data is finalized, the paymasterVerificationGasLimit must be overridden after estimation to accommodate the validation-phase transfer. Failure to do so will result in the UserOperation reverting during validation with an out-of-gas error.

Gas Penalty Accounting

The EntryPoint charges a 10% penalty on unused execution gas. If the UserOperation specifies a callGasLimit of 1,000,000 but only uses 100,000, the EntryPoint charges 10% of the 900,000 unused gas as a penalty. This penalty is deducted from the paymaster's deposit, not from the sender.

If the paymaster's postOp calculation does not account for this penalty, the paymaster will systematically undercharge users a drain that compounds over time. The Openfort paymaster includes an _expectedPenaltyGasCost calculation that estimates the penalty based on actualGasCost, postOpGas, preOpGasApproximation, and executionGasLimit, ensuring the token charge to the user covers the full cost including penalties.

Exchange Rate Trust

The exchange rate in ERC-20 mode is provided by the off-chain signer and embedded in the signed paymasterData. This means the user trusts Openfort to provide a fair rate. The rate is not derived from an on-chain oracle at execution time this is a deliberate design choice that avoids oracle manipulation risks and reduces on-chain gas consumption, but introduces a trust assumption on the signer's rate feed.

ERC-20 Mode Quick Reference
